What're slush hydrogen and slush nitrogen?

Characteristics of slush hydrogen

技術情報1


 Since liquid hydrogen’s density and latent heat of vaporization are approximately 1/14 and 1/5 of those of water, respectively, fuel storage tank capacities become greater for rockets and fuel cells. Also, due to boil-off resulting from heat inleak during transport and storage, the reduction in transport and storage efficiency is a practical problem.

  For example, the densification of liquid hydrogen could make it possible to reduce the structural weight of rocket propellant tanks, thus allowing for an increase in payload (satellite) weight. Slush hydrogen is a cryogenic solid-liquid two-phase fluid, wherein solid hydrogen particles (particle size of about 1 mm) are contained in liquid hydrogen, featuring greater density, and refrigerant heat capacity than liquid hydrogen.

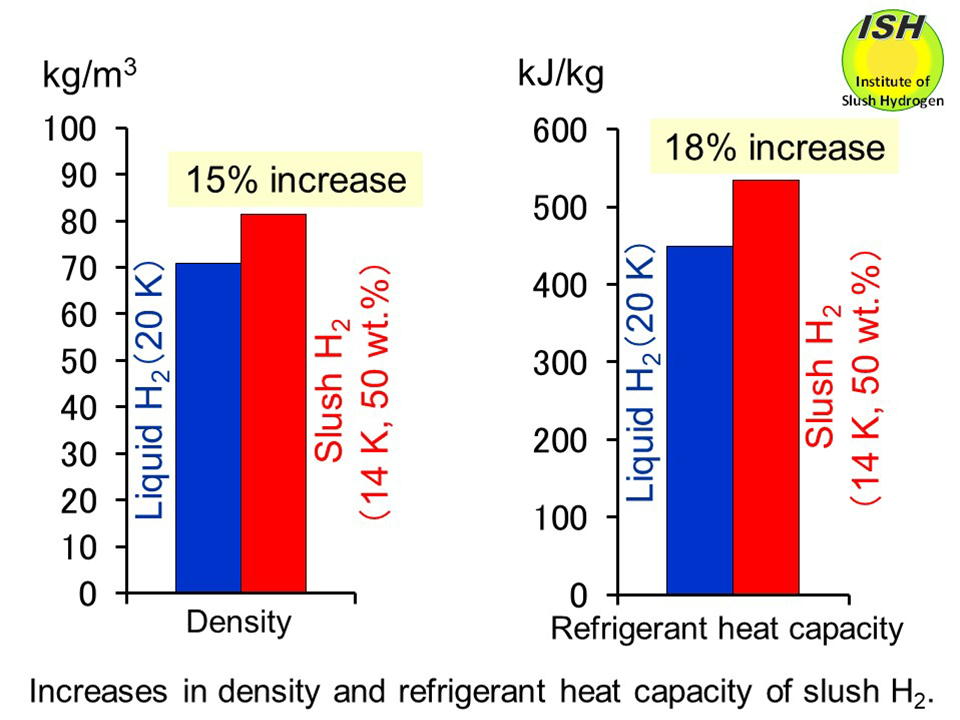

 Compared to normal boiling liquid hydrogen (temperature of 20 K), slush hydrogen with a mass solid fraction of 50 wt.% (temperature of 14 K) features a 15% greater density, and an 18% increase in refrigerant heat capacity (enthalpy) as shown in the above figure.

 There are two different molecular forms of hydrogen: ortho-hydrogen (o-H2) and para-hydrogen (p-H2) as shown in the figure below. In the case of ortho-hydrogen, the two protons of the hydrogen molecule spin in the same direction, while in the case of para-hydrogen, they spin in opposite directions.
 The equilibrium concentrations of ortho- and para-hydrogen differ according to temperature. That of para-hydrogen is approximately 25% by volume at room temperature, but nearly 100% at liquid temperature. The changeover of ortho- to para-hydrogen generates heat of conversion of 703 kJ/kg at the normal boiling point of hydrogen (20 K). Thus, when hydrogen gas with a para-hydrogen concentration of 25% is liquefied and stored, ortho-para conversion gradually occurs, generating a heat of conversion of 527 kJ/kg. Since liquid hydrogen’s latent heat of vaporization is 446 kJ/kg, substantial boiloff occurs during long-term storage, and storage efficiency becomes poor.
 Hydrogen liquefiers normally use a catalyst to speed up the conversion during the liquefaction process so as to produce liquid hydrogen for storage and transport with a para-hydrogen concentration of nearly 100%. The mixture of ortho- and para-hydrogen at high temperatures is called normal hydrogen (n-H2), which is a mixture of 75% ortho-hydrogen and 25% para-hydrogen, by volume.

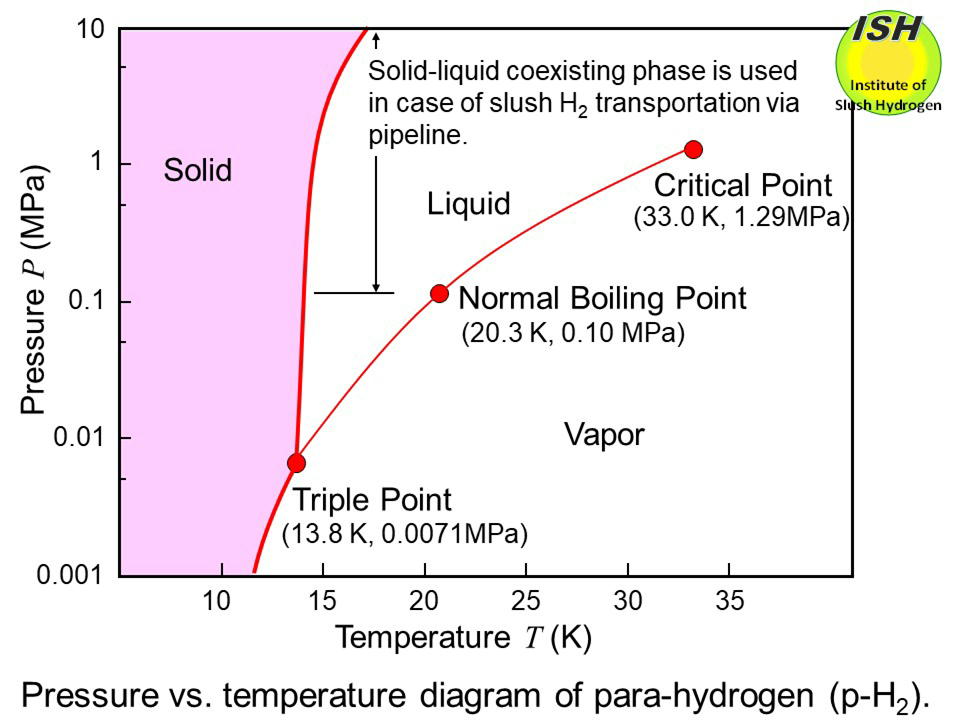

 The use of slush hydrogen would thus allow more efficient transport and storage. Also, in the case of heat due to heat inleak or superconducting quench (transition from a superconductiing state to a normal conducting state), the solid fraction would be reduced due to absorption of some of this heat by the heat of fusion associated with the solid, but liquid temperature increase and vapor-liquid two-phase change would be inhibited. When slush hydrogen is transported via pipeline, a solid-liquid coexisting state of slush hydrogen can be utilized as shown in the figure below.

 Another representative slush fluid is slush nitrogen, which is being considered for use as the refrigerant for high-temperature superconducting equipment. In this case, also at a mass solid fraction of 50 wt.% (temperature of 63 K), density is 16% higher than for normal boiling liquid nitrogen (temperature of 77 K), while the refrigerant heat capacity (enthalpy) increases by 22%.

 Slush hydrogen offers superior characteristics as a functional thermal fluid, and various applications are anticipated for hydrogen transport and storage [4].
